Description
Details
Engine Application: AJ133 5.0L V8 Supercharged & Naturally Aspirated - Gas/Petrol
Compatible Models: Land Rover, Range Rover, Range Rover Sport, Defender 110, Defender 130, Defender 90, Velar, LR4 & more

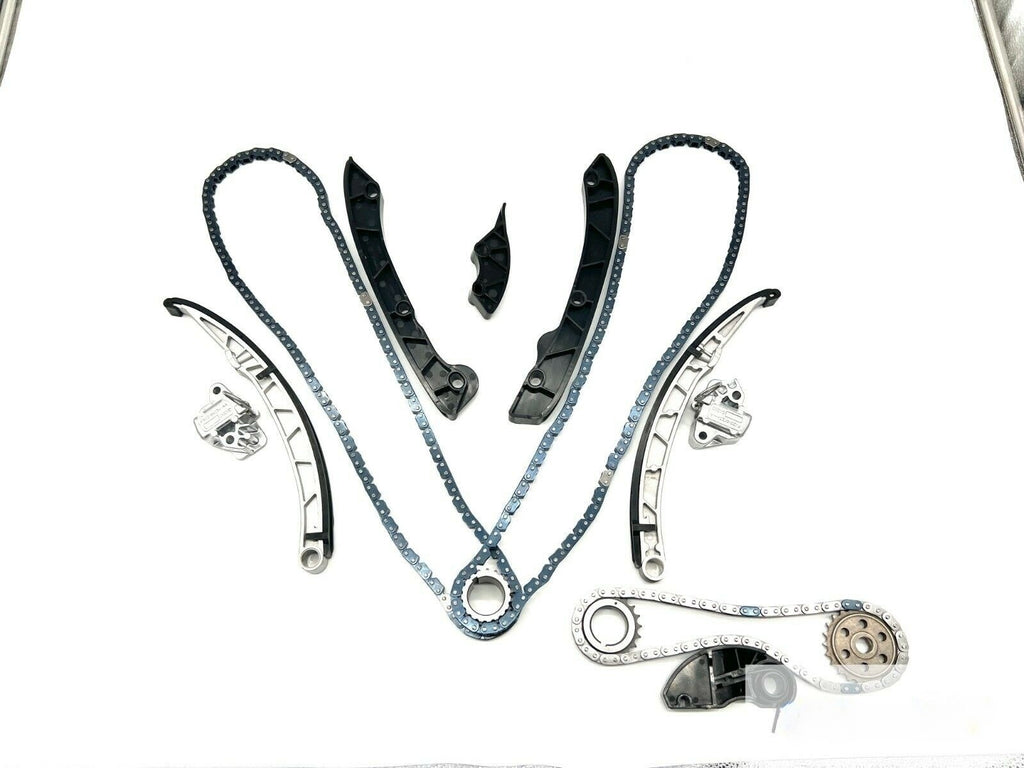

Other Names: Engine Timing Chain Set. Chain Set
Warranty: 1-Year Replacement warranty
Review Components & OEM Part Numbers:

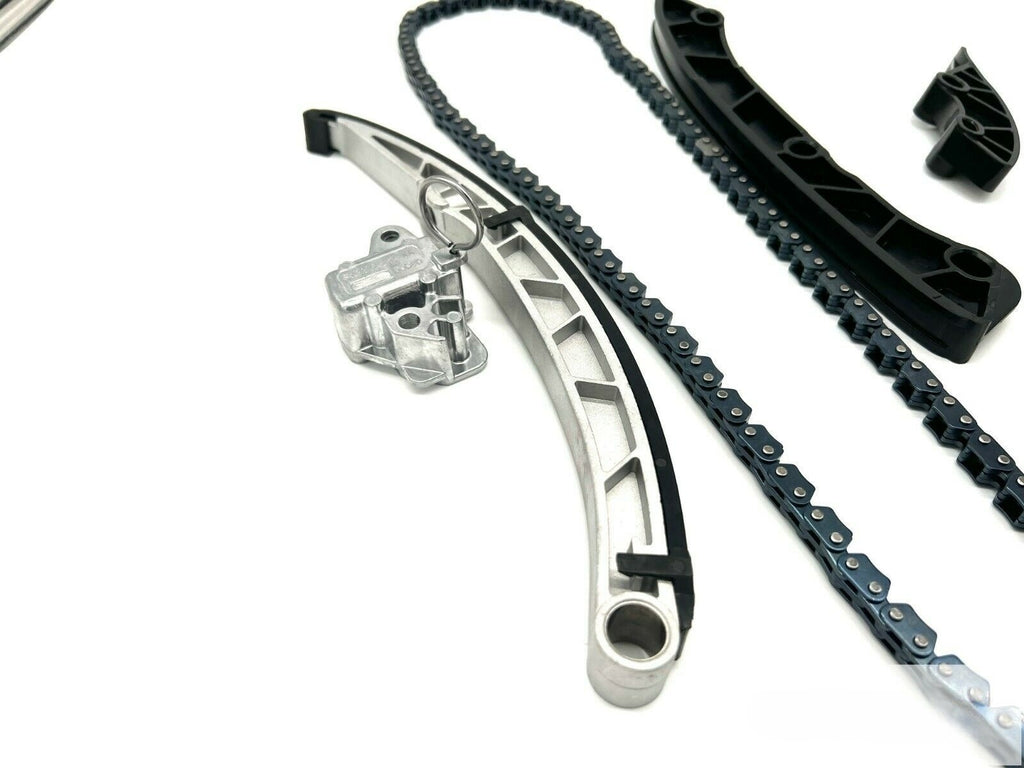

– Chain Tensioner: LR051013
LR087162 replaces: LR012111
LR095472 replaces: LR051008
LR052911 replaces: LR041674

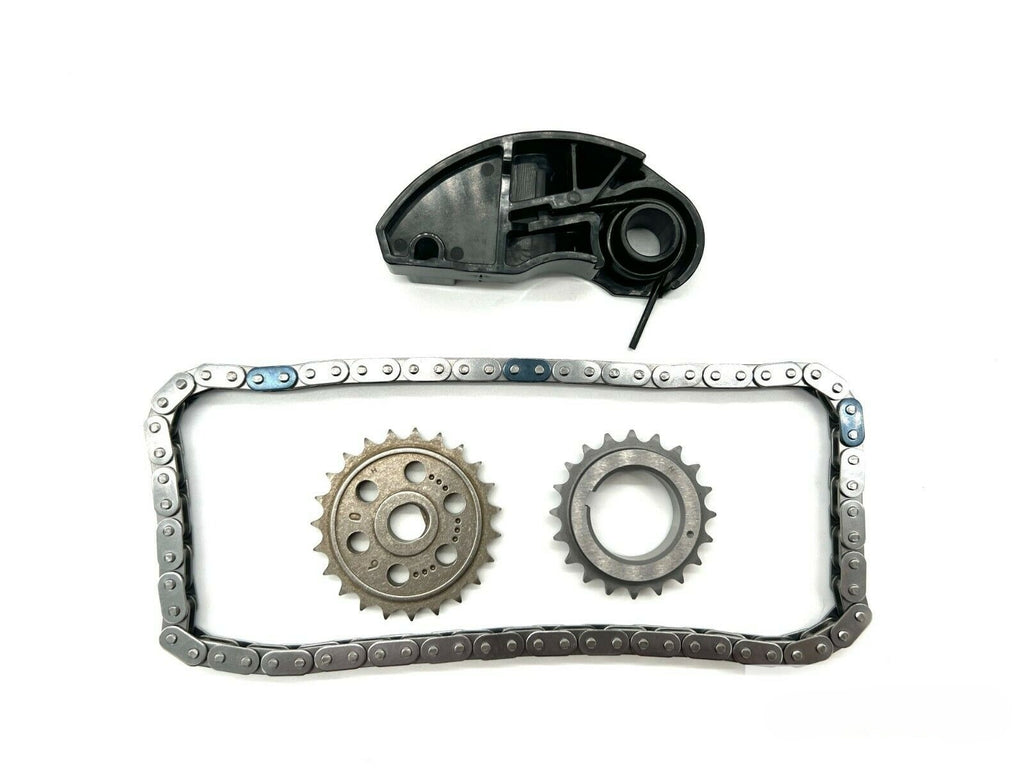

– Oil Pump Gear: LR011218
– Timing Chain: LR032048 replaces: LR012004

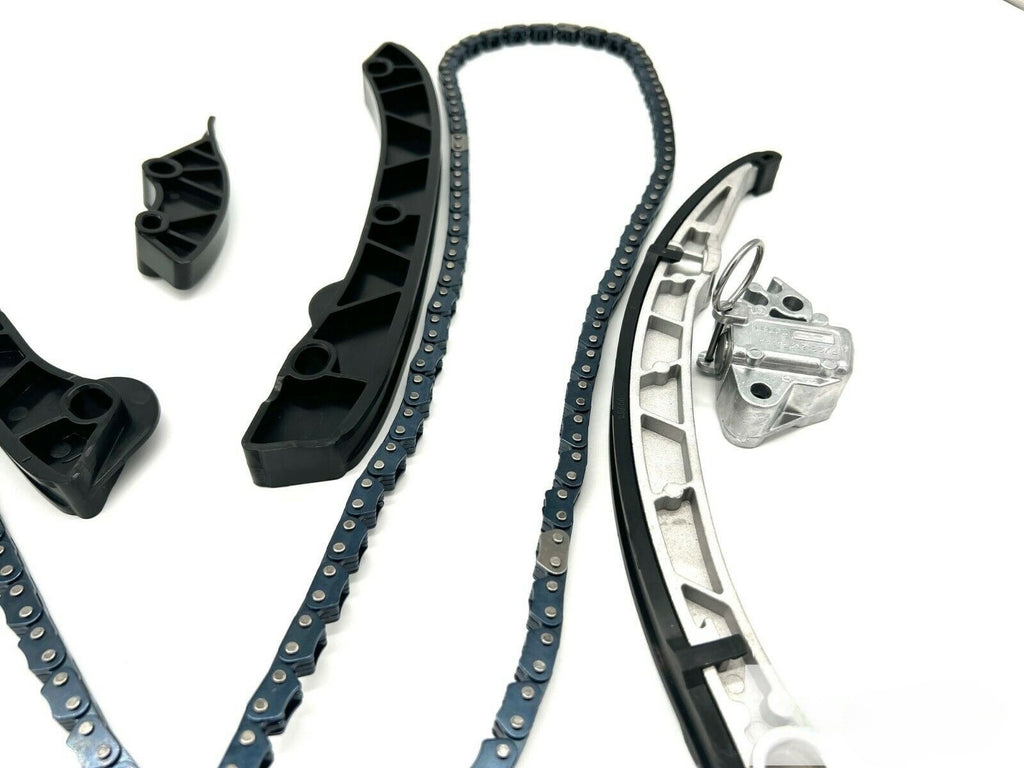

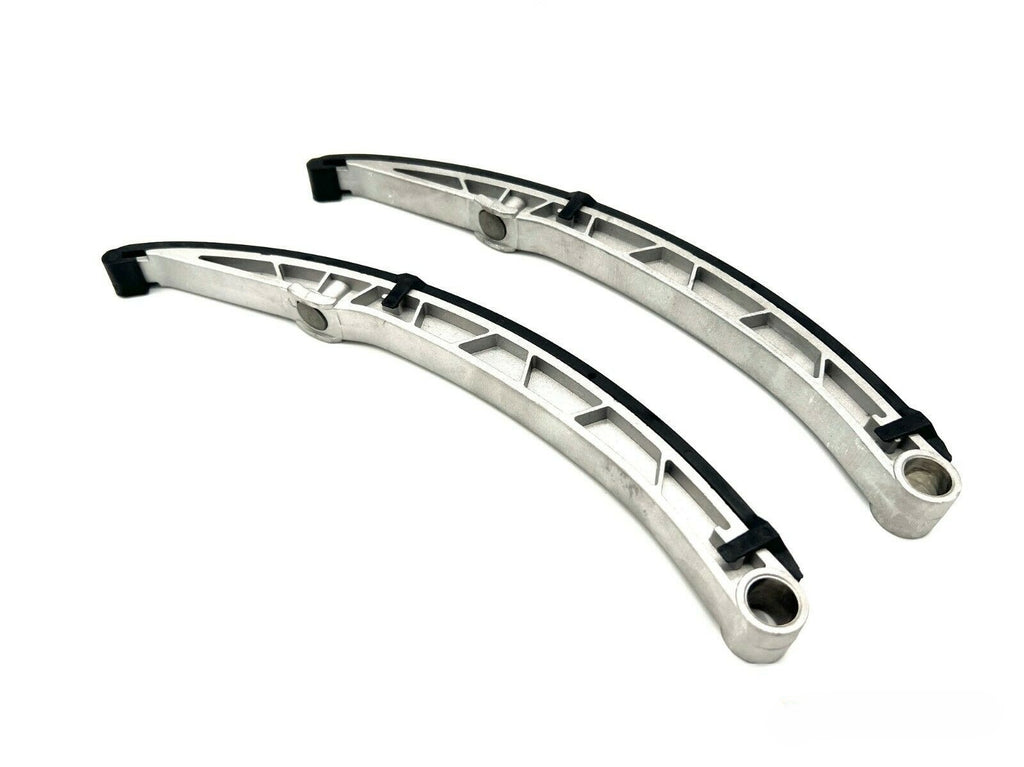

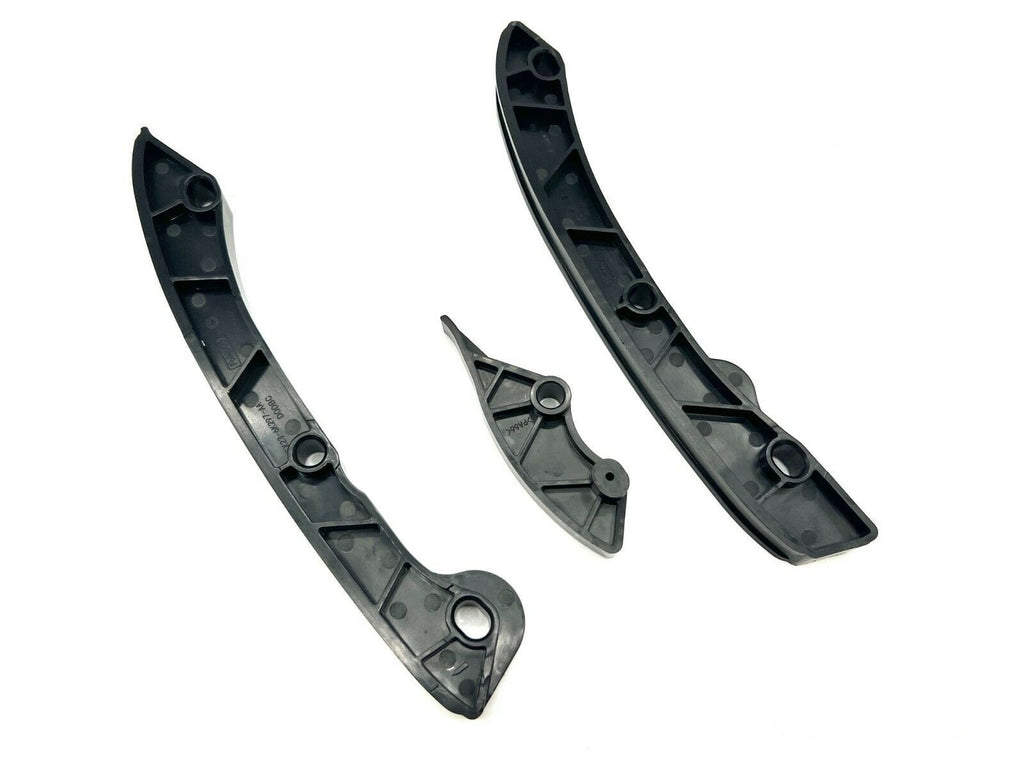

– Chain Guide:
LR051011 replaces: LR010765
LR051012 replaces: LR012642
LR012110
– Crankshaft Gear:
LR072611 replaces: LR015236
LR072638 replaces: LR010884
– Engine Timing Chain:
LR032087 replaces: LR012637
VEHICLE FITMENT
|
Year |
Make |
Model |
Engine & Transmission |
|
2024 |
Land Rover |
Defender 110 |
5.0L V8 - Gas |
|
2024 |
Land Rover |
Defender 130 |
5.0L V8 - Gas |
|
2024 |
Land Rover |
Defender 90 |
5.0L V8 - Gas |
|
2023 |
Land Rover |
Defender 110 |
5.0L V8 - Gas |
|
2023 |
Land Rover |
Defender 90 |
5.0L V8 - Gas |
|
2022 |
Land Rover |
Defender 110 |
5.0L V8 - Gas |
|
2022 |
Land Rover |
Defender 90 |
5.0L V8 - Gas |
|
2022 |
Land Rover |
Range Rover |
5.0L V8 - Gas |
|
2022 |
Land Rover |
Range Rover Sport |
5.0L V8 - Gas |
|
2021 |
Land Rover |
Range Rover |
5.0L V8 - Gas |
|
2021 |
Land Rover |
Range Rover Sport |
5.0L V8 - Gas |
|
2020 |
Land Rover |
Range Rover |
5.0L V8 - Gas |
|
2020 |
Land Rover |
Range Rover Sport |
5.0L V8 - Gas |
|
2020 |
Land Rover |
Range Rover Velar |
5.0L V8 - Gas |
|
2019 |
Land Rover |
Range Rover |
5.0L V8 - Gas |
|
2019 |
Land Rover |
Range Rover Sport |
5.0L V8 - Gas |
|
2018 |
Land Rover |
Range Rover |
5.0L V8 - Gas |
|
2018 |
Land Rover |
Range Rover Sport |
5.0L V8 - Gas |
|
2017 |
Land Rover |
Range Rover |
5.0L V8 - Gas |
|
2017 |
Land Rover |
Range Rover Sport |
5.0L V8 - Gas |
|
2016 |
Land Rover |
Range Rover |
5.0L V8 - Gas |
|
2016 |
Land Rover |
Range Rover Sport |
5.0L V8 - Gas |
|
2015 |
Land Rover |
Range Rover |
5.0L V8 - Gas |
|
2015 |
Land Rover |
Range Rover Sport |
5.0L V8 - Gas |
|
2014 |
Land Rover |
Range Rover |
5.0L V8 - Gas |
|
2014 |
Land Rover |
Range Rover Sport |
5.0L V8 - Gas |
|
2013 |
Land Rover |
LR4 |
5.0L V8 - Gas |
|
2013 |
Land Rover |
Range Rover |
5.0L V8 - Gas |
|
2013 |
Land Rover |
Range Rover Sport |
5.0L V8 - Gas |
|
2012 |
Land Rover |
LR4 |
5.0L V8 - Gas |
|
2012 |
Land Rover |
Range Rover |
5.0L V8 - Gas |
|
2012 |
Land Rover |
Range Rover Sport |
5.0L V8 - Gas |
|
2011 |
Land Rover |
LR4 |
5.0L V8 - Gas |
|
2011 |
Land Rover |
Range Rover |
5.0L V8 - Gas |
|
2011 |
Land Rover |
Range Rover Sport |
5.0L V8 - Gas |
|
2010 |
Land Rover |
LR4 |
5.0L V8 - Gas |
|
2010 |
Land Rover |
Range Rover |
5.0L V8 - Gas |
|
2010 |
Land Rover |
Range Rover Sport |
5.0L V8 - Gas |
